Setting up SAML for Microsoft Azure Tool

Setting up SAML for Microsoft Azure Tool

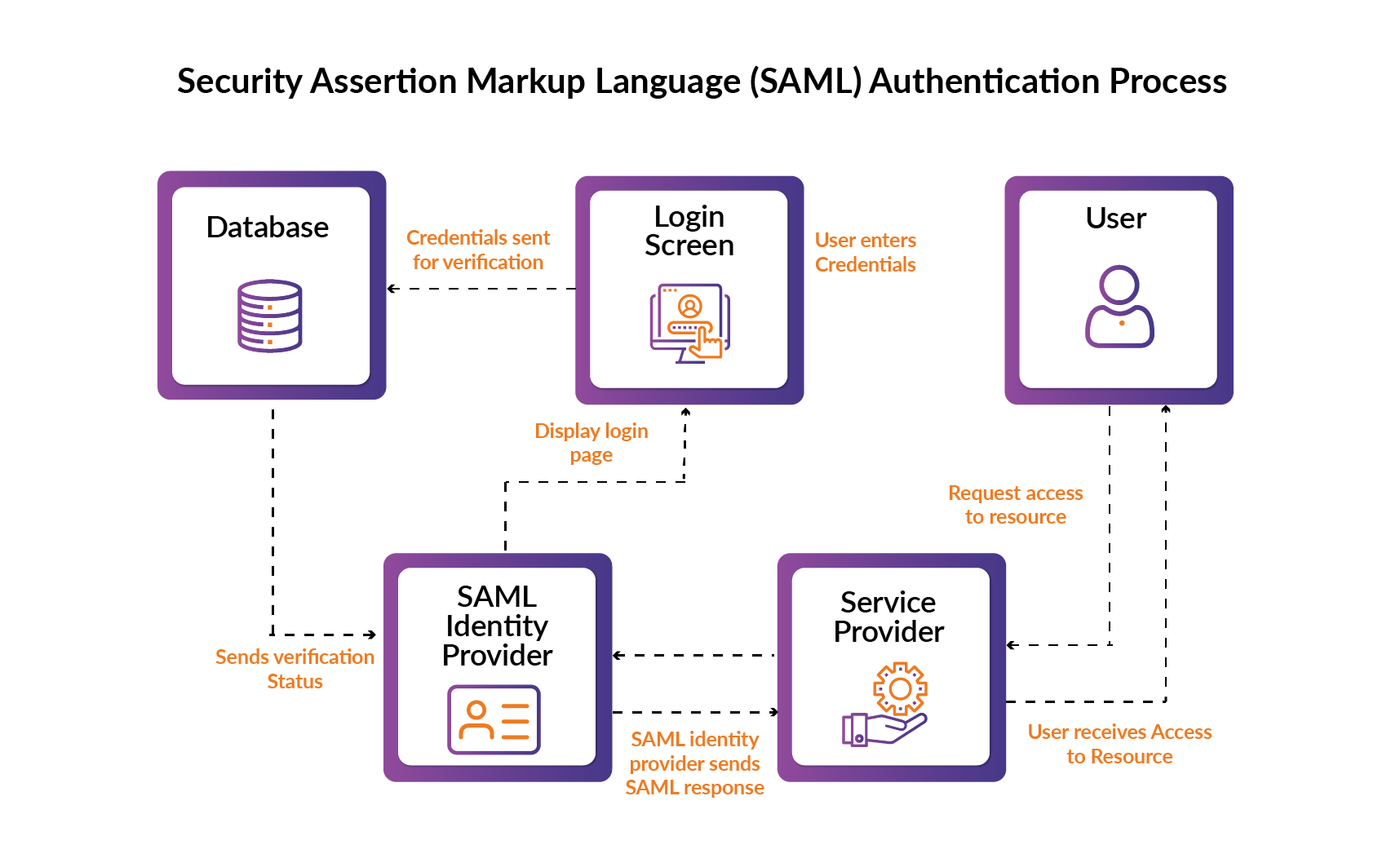

The Security Assertion Markup Language (SAML) feature allows a user to access all of their SaaS applications by entering their login credentials once on a single page. There are several benefits to it:

  1. It improves the security posture as there is only a single point of authentication.
  2. Credentials are sent only to the identity provider directly.
  3. It removes the need for multiple login credentials.
  4. It removes the need for user information to be maintained and synchronized between directories.

Securin allows SSO via the Microsoft Azure application. In this document, we shall take a look at how to set up SSO for Securin.


Prerequisites

Please email us to support@securin.io requesting the below details

  1. Identifier (Entity ID)
  2. Reply URL (Assertion Consumer Service URL)

Steps to Set up the SAML:

Please follow the steps to set up SAML
  1. Creating an Enterprise Application on Azure
  1. Setting up the Single-Sign-On (SSO)
  1. Adding Attributes and Claims
  1. Adding Users to the Application
  1. Signing in with Single-Sign-On (SSO) in Securin

Creating an Enterprise Application on Azure

To create an enterprise application:

  1. Log in to your Microsoft Azure application.

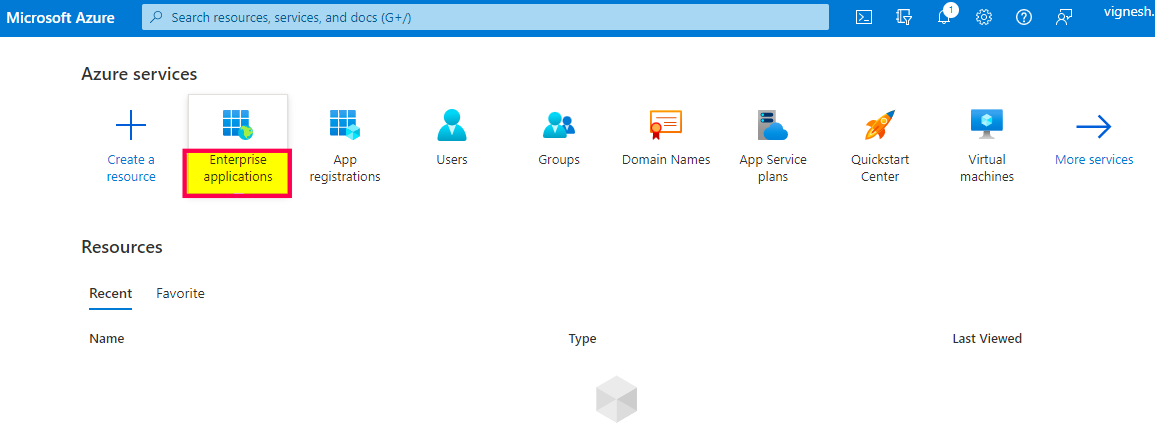

  2. Click Enterprise applications.

Enterprise Applications on the Homepage

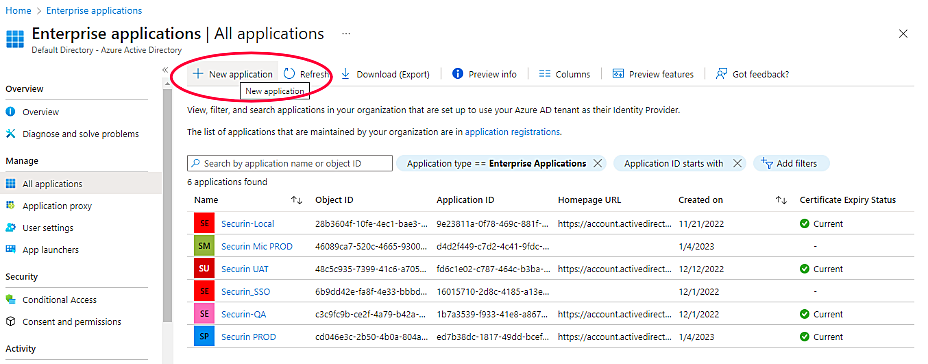

  1. `Click +New Application on the top bar.

Add a New Application

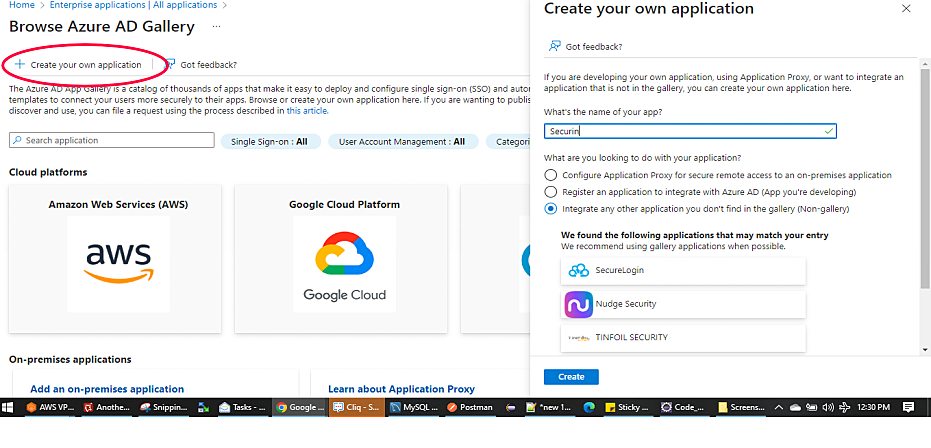

  1. Enter the name of the application and choose Integrate any other application you don't find in the gallery (Non-gallery).
  1. Click Create.

Add Your Application


Setting up the Single-Sign-On
  1. In the subsequent page, click Set up single sign on.

Set up Single Sign on

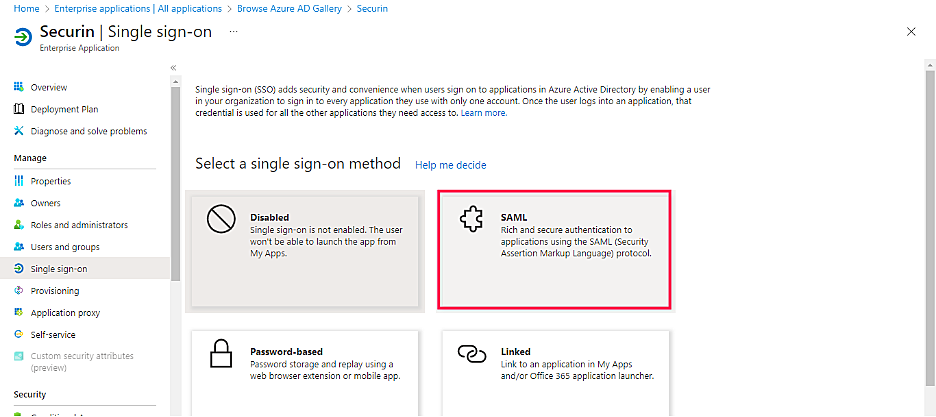

  1. Select SAML as the SSO method

Single Sign-on Method

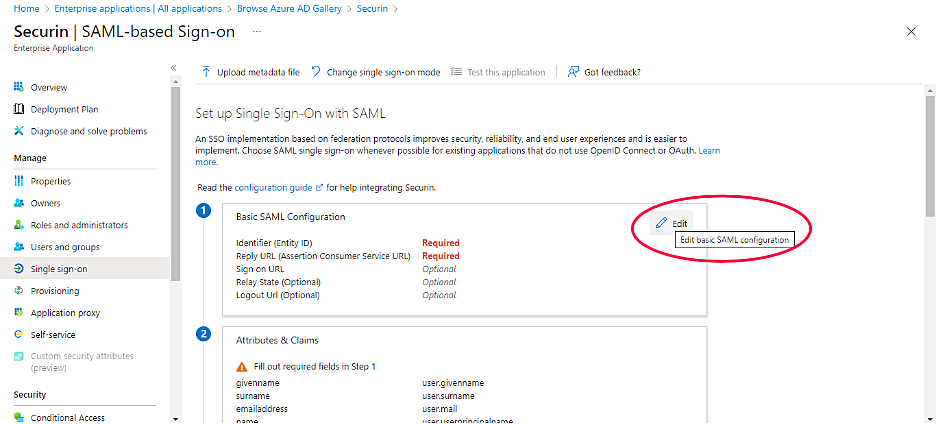

  1. Click Edit on the right corner.


Edit Configuration

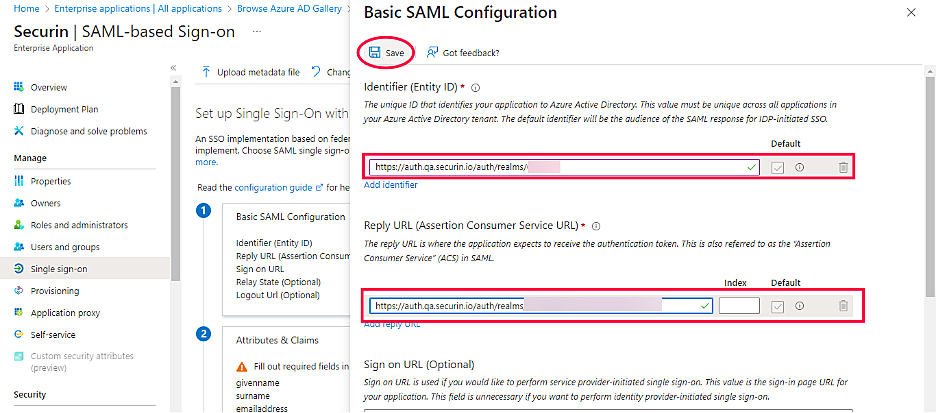

  1. Enter the appropriate URLs under Identifier and Reply URL.

Configuration Settings


Adding Attributes and Claims

Next, you need to add the Attribute claims. Attribute claims allow you to add users and their email addresses to the SAML setup so they can access the SSO feature.

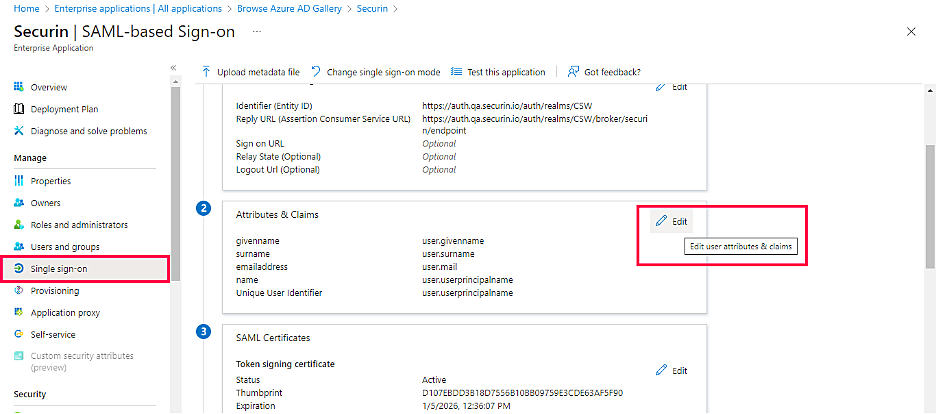

  1. On the left navigation pane, click Single Sign-on and click Edit on the Attributes & Claims panel.



Edit Attributes and Claims


Here, you need to edit the values of the given name, surname, and email address.

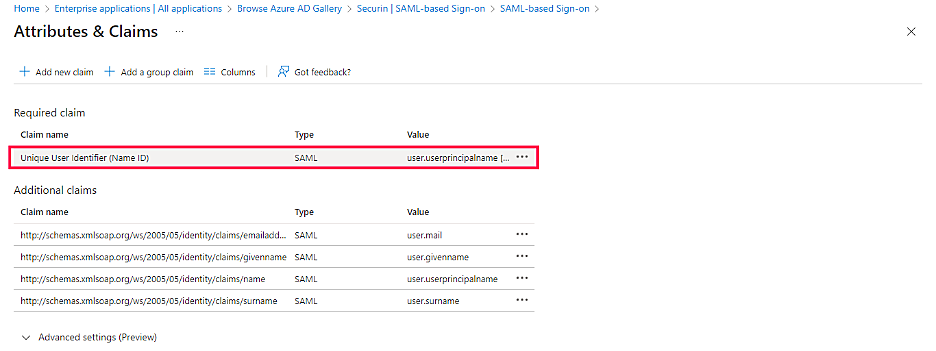

  1. Click the Unique User identifier claim to edit it.

Claim Values

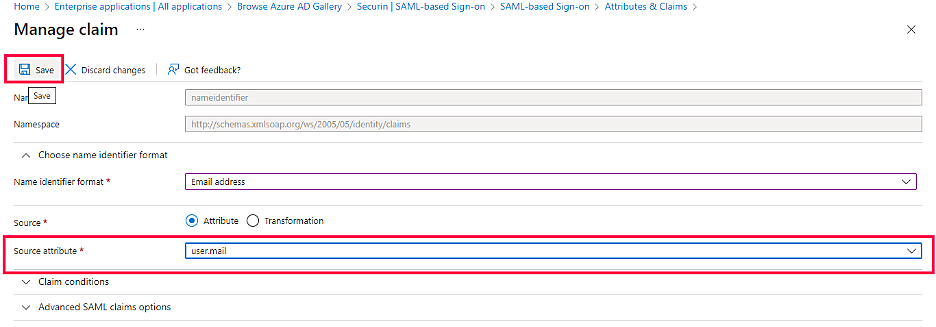

  1. Edit the source attribute field to user.email in the field and click Save.

The Source Attribute Field


Following this, add a group claim.

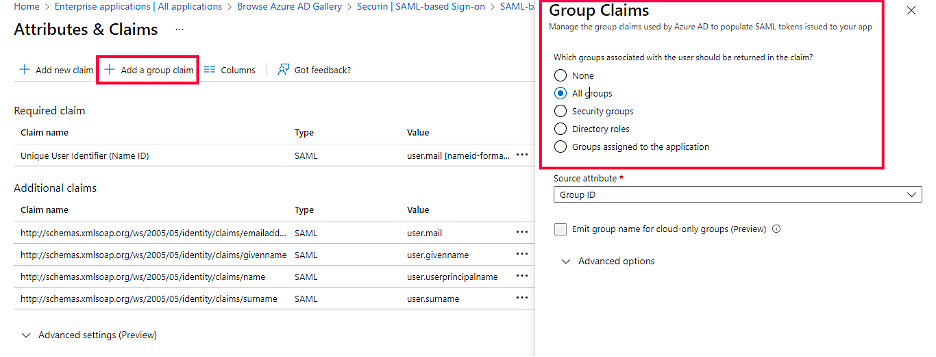

  1. Click Add a group claim on the top bar, select All groups, and click Save.

Group Claims Settings

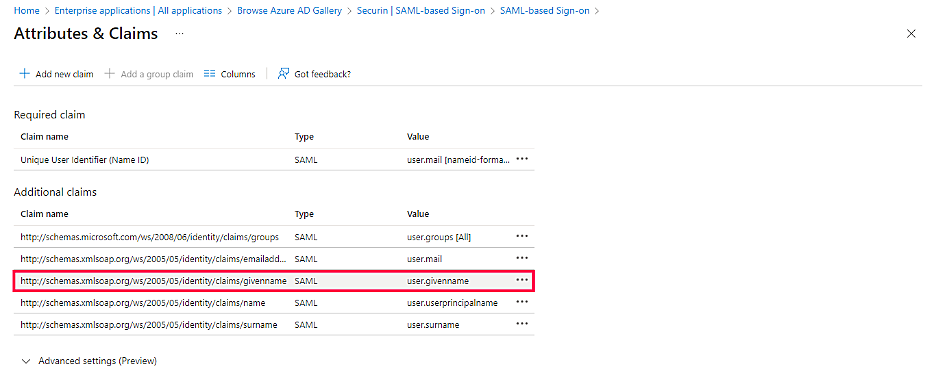

  1. Next, click the given name under Additional Claims.

Additional Claims Settings—1



  1. Edit the name to first name and click Save.

Additional Claims Settings—2



  1. Next, click the surname under Additional Claims.

Additional Claims Settings—3



  1. Edit the name to last name and click Save.

Additional Claims Settings—4


The Azure SSO configurations are now complete.




Adding Users to the Application

Now that the application is set up, you can add the users who can access the single sign-on feature.

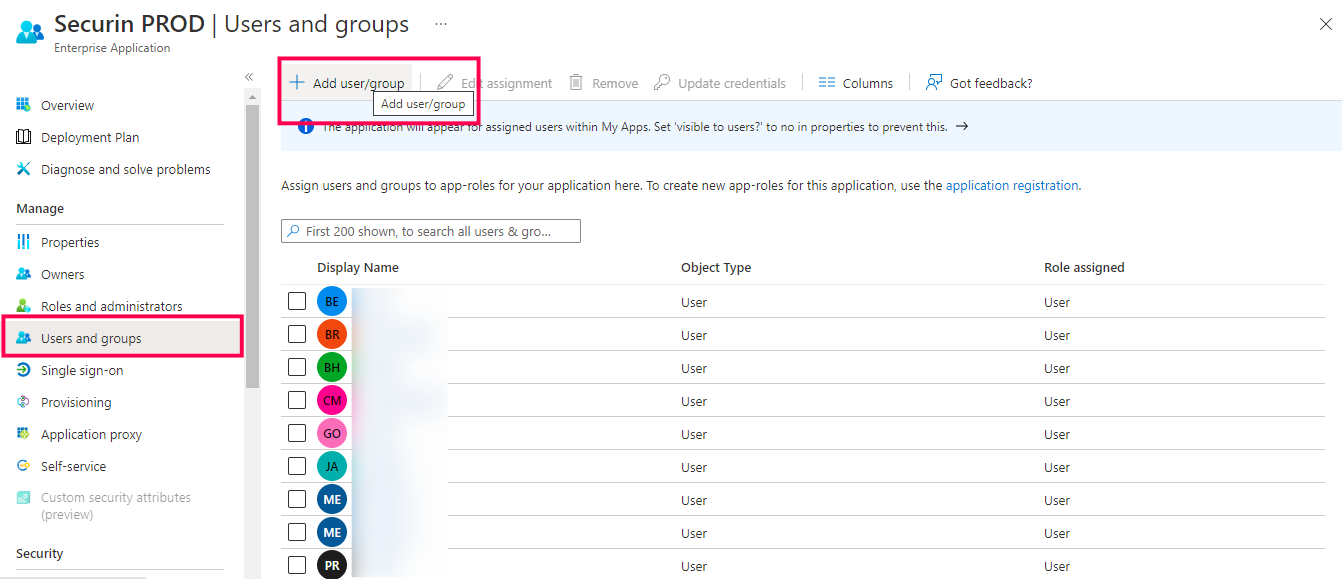

  1. In the Enterprise application, click +Add user/group to open the assignments page.


Adding Users

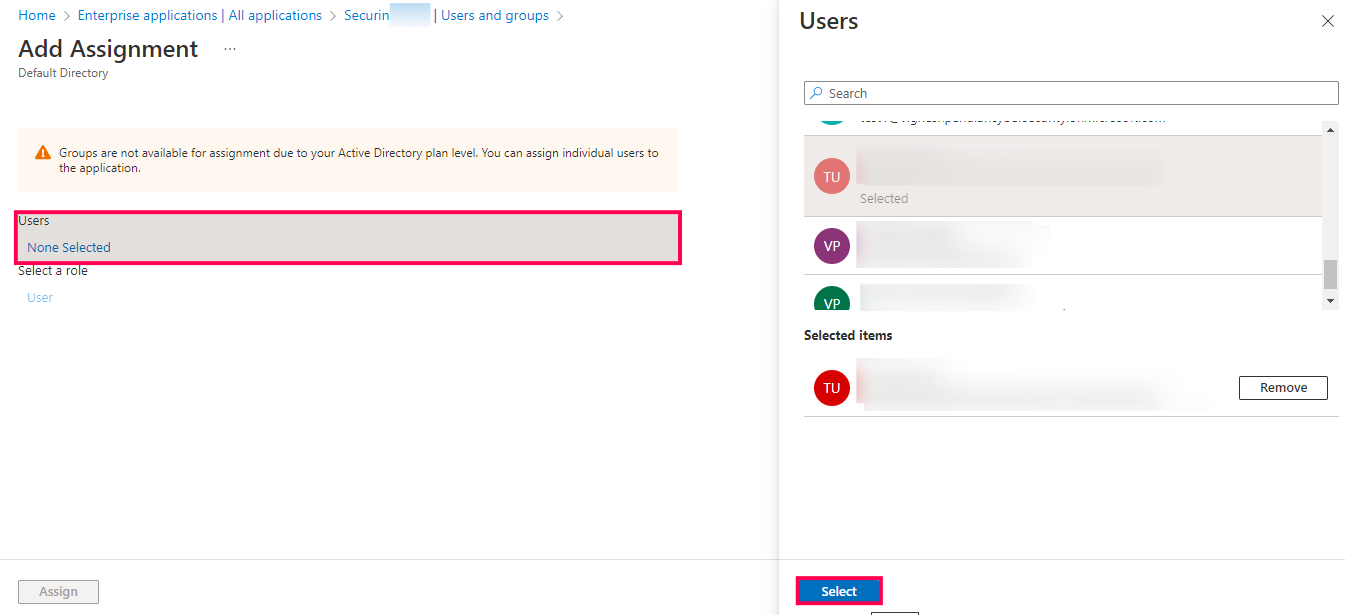

  1. Click Users and groups and click None selected.



Assigning Users— 1

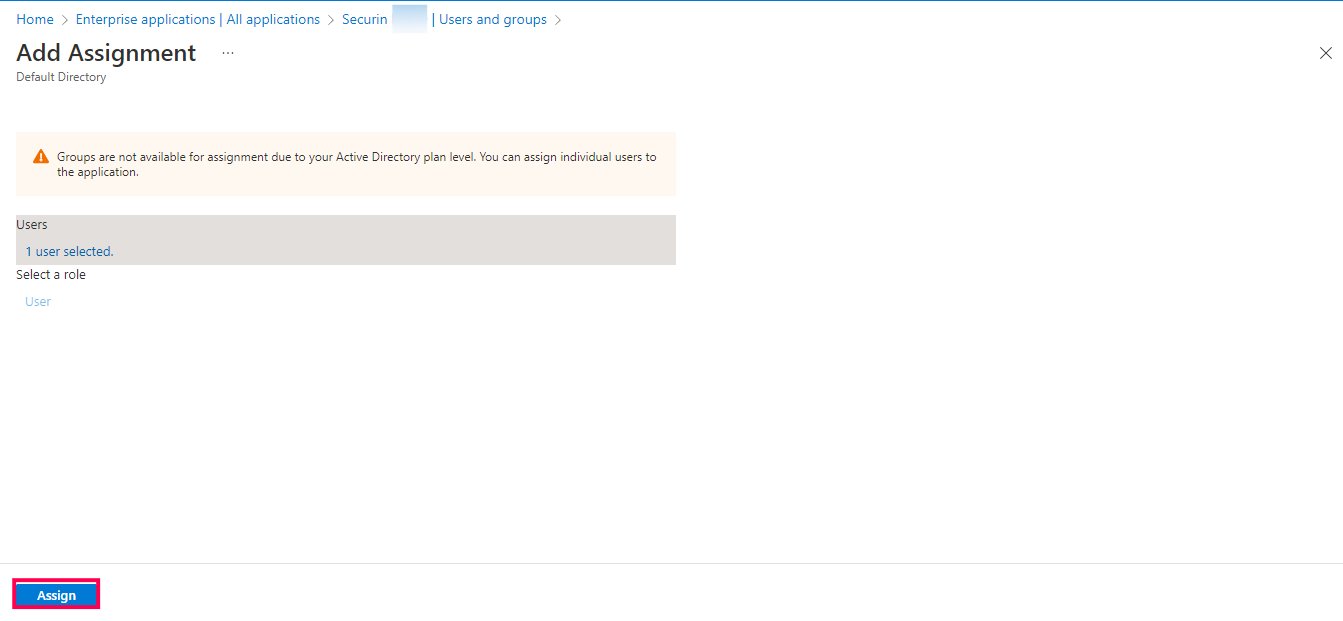

  1. Click the Assign button to return to the application page.


Assigning Users—2


Your user setup is also complete now.


Post-Configuration Customer Actions

Please send the following details to support@securin.io.

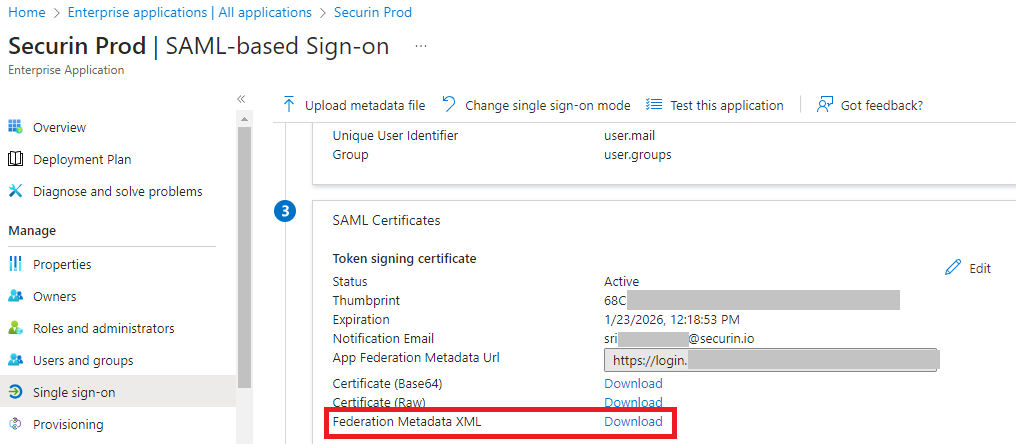

  1. Federation Metadata XML
  2. List of domains/subdomains associated with the email of the users added to SAML (For example: If your users' email addresses look like user1@securin.io, user2@marketing.securin.io, and user3@sales.securin.io, please send securin.io, marketing.securin.io, and sales.securin.io). This is needed for redirecting to your SAML application and will be stored to a field in SAML IdP on keycloak.


The client-side configuration is complete. Now, we will configure the SAML setup at our end and inform you once it is done.


Once you receive the confirmation from our team, you can start using the Sign-in with the SSO feature.



Signing in with Single-Sign-On in Securin

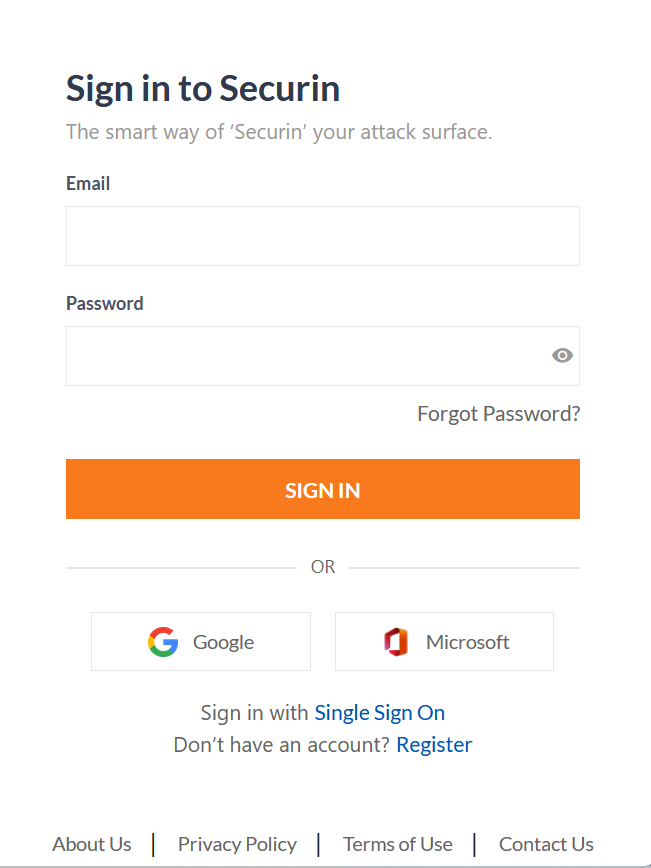

  1. In Securin's sign-in page, click Sign-in with Single Sign On

Securin Sign-in Screen

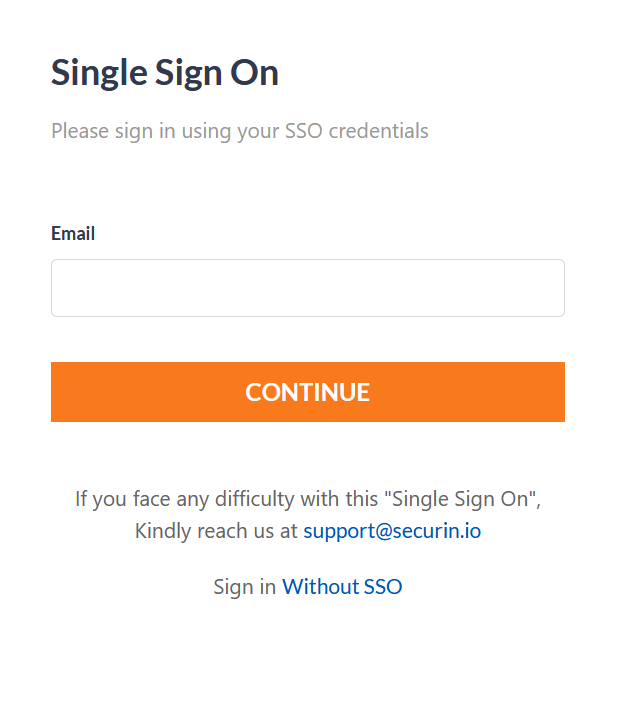

  1. Enter the email address with which you have set up SSO and click Continue.

SSO with Securin

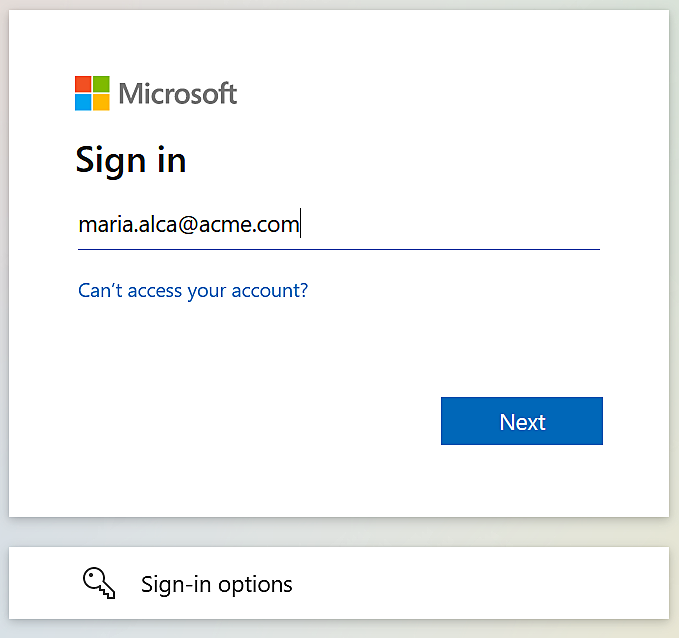

  1. You will be redirected to the Microsoft Sign in page. Enter the same email address here and click Next.

Microsoft Sign-in

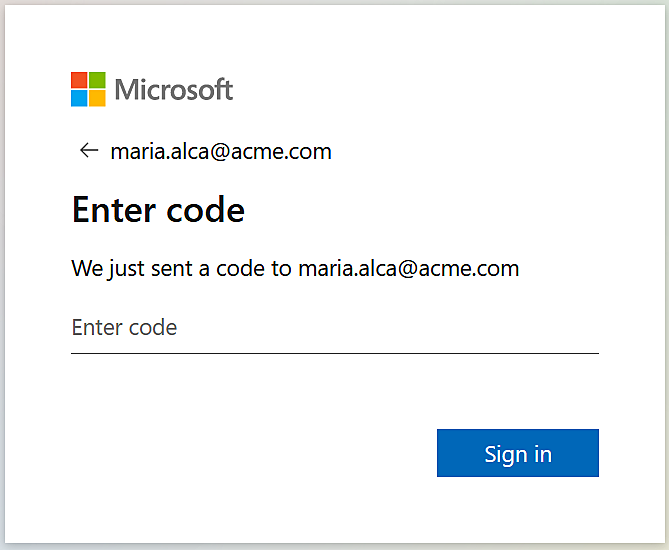

  1. You will receive a verification code in your email. Enter this code and click Sign in.

Verification Code

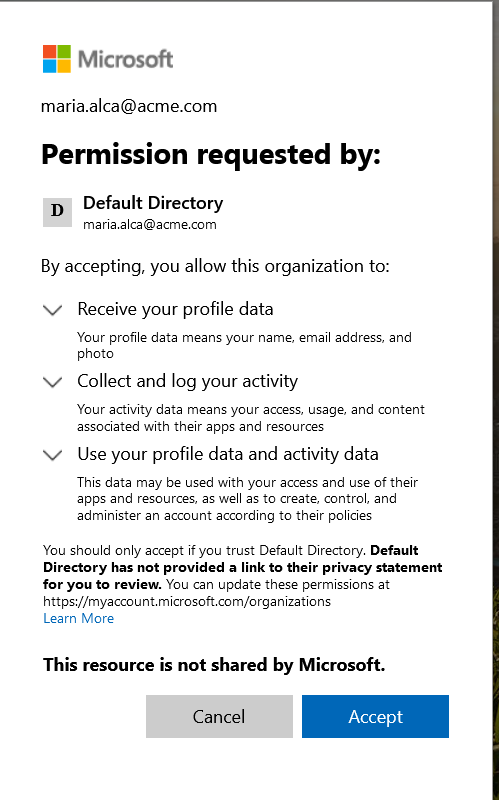

  1. Accept the terms and conditions.

Microsoft Permissions

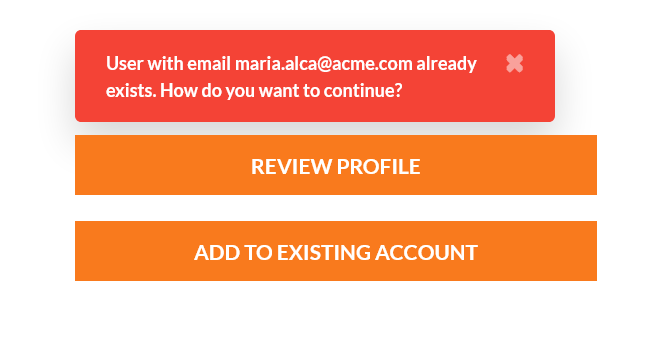

If you already have linked your Azure email address to the Securin application, you will see this page:

Account Actions


  1. In this case, click Add to Existing Account.

In the subsequent page, you will find the following instructions.

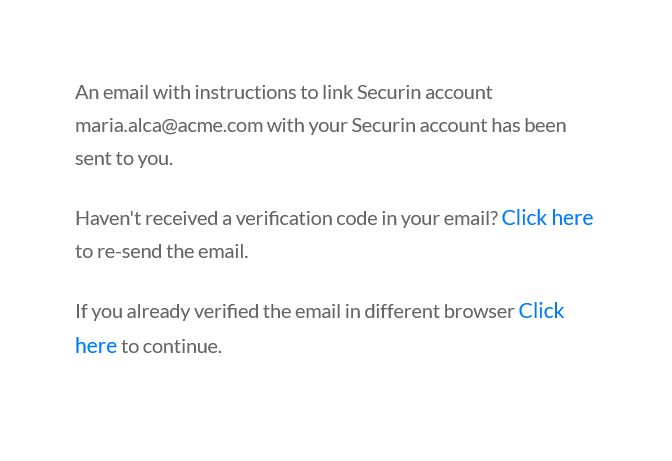

Instructions


  1. If you haven't already received the verification code, click the first link to receive the code and verify.
  1. If your email address is already verified, click the second link.
  1. You will receive the link to verification in your email address. Click the link and follow the given steps.


Once it is done, you will be able to log in easily.


Alternately, you can login via your Azure application. To do this,
  1. Go to https://myapplications.microsoft.com/
  2. Sign into your application.
  3. Click on My Apps.
  4. Click on your Securin account from the applications listed under My Apps.

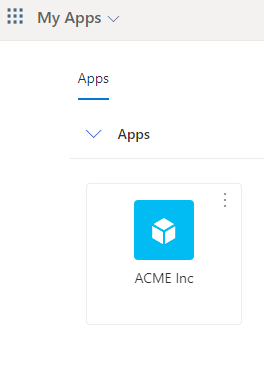

Applications
